Architecture

The server should be self-explanatory when reading the source code, nevertheless, this documentation provides more details about the server workflow.

The server uses Asio non-boost C++20 to run.

The network code can be found under the rtype namespace included in the Game.hpp.

To instantiate a new server, simply call the Server class constructor and calls startServer() to start the server. Just by doing that will run your server properly. However, you need to keep your program open or the server will close itself if the main returns.

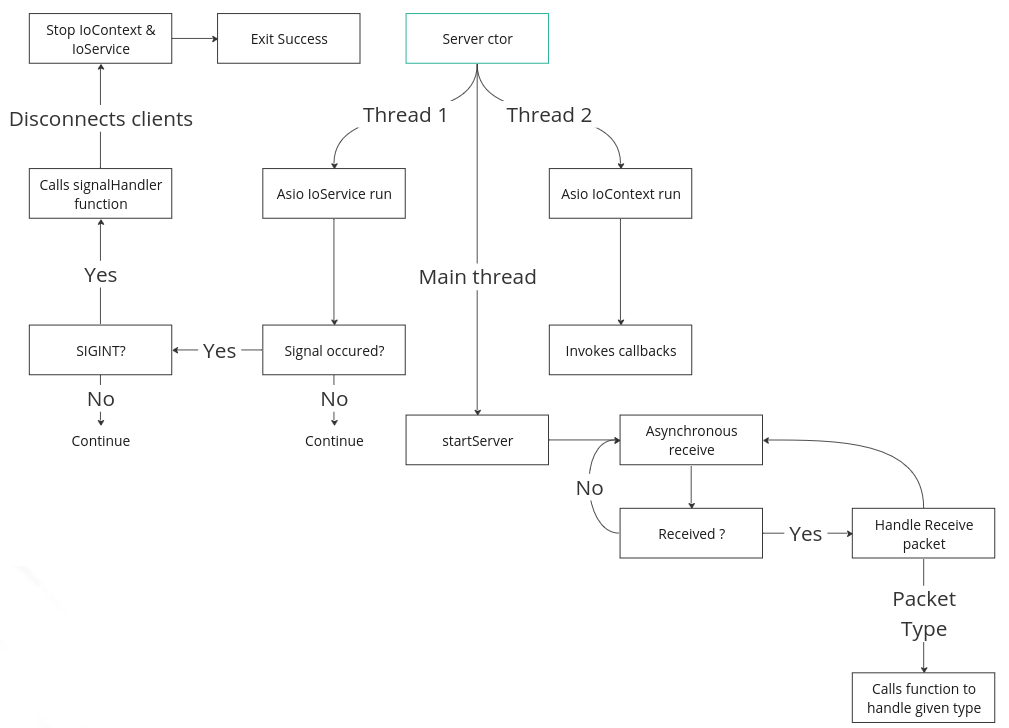

Architecture

Here is an example of implementation

#include "Game.hpp"

int main()
{
    rtype::loopSystem game;
    game.runNetwork();

    while (true) {
        // Game logics
    }
}

CFG Config files

The configuration file is required to run the server with modified settings. It provides the host and port to listen to.

Here is the server.cfg file located inside the resources directory.

# Server config file

# IP Address to connect to
host=127.0.0.1

# Port of the host to connect to
port=12346

Constructors/Destructors

Server default ctor

Network()

Network class ctor. The ctor will seek a .cfg file for its configuration as mention before. If the file format is corrupted, a value can't be found or the file is missing, the default values are applied. If unchanged in the code, they will be 127.0.0.1 for the host and 12346 for the port number

~Network

~Network()

The Network class destructor.

Getters

getIoContext

asio::io_context &getIoContext() const noexcept

Returns the Asio IO context.

getIoService

asio::io_context &getIoService() const noexcept

Returns the Asio IO Serivice.

getHost

const std::string &getHost() const noexcept

Returns the Host string.

getPort()

std::uint16_t getPort() const noexcept

Returns the Port number as an unsigned 16bits integer

getServerEndpoint

const asio::ip::udp::endpoint &getServerEndpoint() const noexcept

Returns the server endpoint, the endpoint corresponds to the communication terminaison of the server.

getSocket

const asio::ip::udp::socket &getSocket() const noexcept

Returns the server socket.

getAsioErrorCode

const asio::error_code &getAsioErrorCode() const noexcept

Returns the Asio error code. This value is set whenever an error occures in the Asio context.

getClients

std::vector<Client> &getClients() const noexcept

Returns the connected clients as a vector of Client class.

getPacket

const std::array<std::uint8_t, packetSize> &getClients() const noexcept

Returns the last packet received.

Setters

setHost

void setHost(const std::string &host)

Sets the server host.

setPort

void setPort(std::uint16_t port)

Sets the server port

setConnection

void setConnection(const std::string &host, std::uint16_t port)

Sets the server host and port, This calls to the setHost and setPort.

setServerInstance

static void setServerInstance(Server* instance)

Set the static variable serverInstance used to access class elements from the IO Service, mainly used to handle CTRL-C event.

setPacket

void setPacket(T &packet, packet::packetHeader &header, T &data)

Sets the packet from a typename T template packet, the packet header and its data. This function will memory copy the header and data into the packet. The packet must be large enough to hold the header + data sizes.

Miscellaneous

writeToLogs

void writeToLogs(const std::string_view &status, const std::string &msg)

Allows to write into the server log a custom message. The Logs.hpp file provided the following definitions for the status: - logInfo - logWarn - logErr - logGameInfo - logGameWarn - logGameErr

isSocketOpen

bool isSocketOpen() const noexcept

Returns true if the socket is open, false otherwise.

setPacket

void setPacket(T &packet, packet::packetHeader &header, T &data)

Memory moves the header and data into the packet, overwriting the potential existing data in the packet T.

fillBufferFromRequest

void fillBufferFromRequest(T &packet, std::size_t size)

Fills the packet given as parameter from the private variable _packet of the Server class. This function will memory copy into packet.

sendResponse

void sendResponse(const packet::packetTypes &type, T &data, std::uint64_t roomId = std::numeric_limits<std::uint64_t>::max(), bool toServerEndpoint = false, const std::string cliUuid = "")

Builds a packet and sends it to all the clients in the given romm identifier if no cliUuid are provided. The packet must not contains any header as it is generated using the type variable and the size of packet. If the cliUuid is set, the packet will only be sent to the given client UUID. If the UUID is invalid or doesn't link to a valid client, the packet remains unsent.

sendSparseArray

void sendSparseArray(const packet::packetTypes &type, sparse_array<T> &sparseArray, std::uint64_t roomId, const std::string cliUuid = "")

Sends the given ECS sparse array type T to the clients in the room identifier or to a specific client is cliUuid is set.

receiveCallback

void receiveCallback(const asio::error_code &errCode, std::size_t bytesReceived)

Handles the received packet type. This function is called from the asynchronous receiver function from Asio socket.async_receive_from.

receive

void receive()

Start the asynchronous receive operations.

startServer

void startServer()

Start the server and calls everything required.

stopServer

void stopServer()

Stop the server properly.

signalHandler

static void signalHandler(int signum)

Handles the signal events.

addClient

std::string addClient(std::uint64_t roomId)

Adds a new client to the client list in the given room identifier and returns its new UUID.

removeClient

void removeClient(const std::string &uuid)

Remove a client from the list given the uuid. If the client is not found, the client list remains unmodified.
